Double Y axis Swiss Type CNC Lathe W328/W428
Home > W Series (32 / 42) > Double Y axis Swiss Type CNC Lathe W328/W428
W328/W428
Description
We always think about needs and conveniences from users, and then, we make more suitable and efficient machines, W series. The human-based and innovation are our important core design. The new experience by W series presented.
1.Rigidity structure design and powerful spindles bring more producing ability and machining performance.
2.Fast and heavy turning by powerful live tools. (see main structure list)

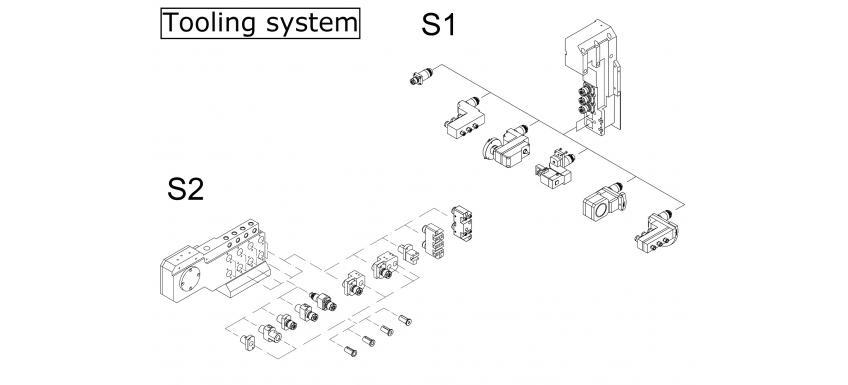

3.Special tooling holders for complicated jobs. (see optional accessories list)
4.Spindle chiller system makes stable temperature and good precision jobs. (see standard accessories list)
5.Hydraulic clamping spindles are easy adjustment. (see standard accessories list)
Feature
Process Capacity:
|
Item |
Unit |
Max. Capacity |
Remark |
|
Main/ Sub spindle Max. drilling |
mm |
Ø10 |
SUS303 |
|
Main/ Sub spindle Max. tapping |
mm |
M10 / P1.5 |
SUS303 |
|
Cross live tool Max. drilling |
mm |
Ø10 |
SUS303 |
|
Cross live tool Max. tapping |
mm |
M8 / P1.25 |
SUS303 |
|
Sub spindle face live tool Max. drilling |
mm |
Ø10 |
SUS303 |
|
Sub spindle face live tool Max. tapping |
mm |
M6 / P1.0 |
SUS303 |
*Tested by FANUC system
Specification Table
Main structure:
|
Item |
Unit |
W268 |
Remark |
|
Max. turning dia. |
mm |
Ø26 |
|
|

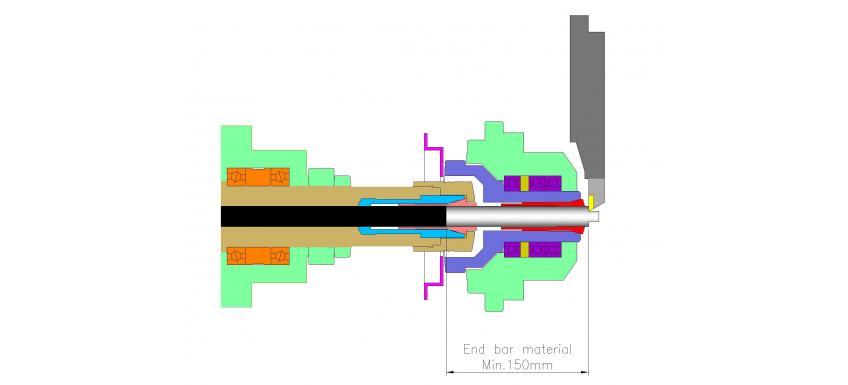

Max. turning length (Rotary) |
mm |
300 |
One stroke |
|
Max. turning length (Fixed) |
mm |
230 |
|
|
Max. turning length (Non guide bush) |
mm |
65 |
|
|
OD tooling holder |
pcs |
6 |
□16 |
|
ID tooling holder |
pcs |
5 |
Ø25 |
|
Cross live tooling holder |
pcs |
ER20x3 , ER16x2 |
5P |
|
Face live tooling of sub spindle holder |
pcs |
8 |
ER-16 |
|
Sub spindle aside drilling tooling holder |
pcs |
2 |
Ø25 |
|

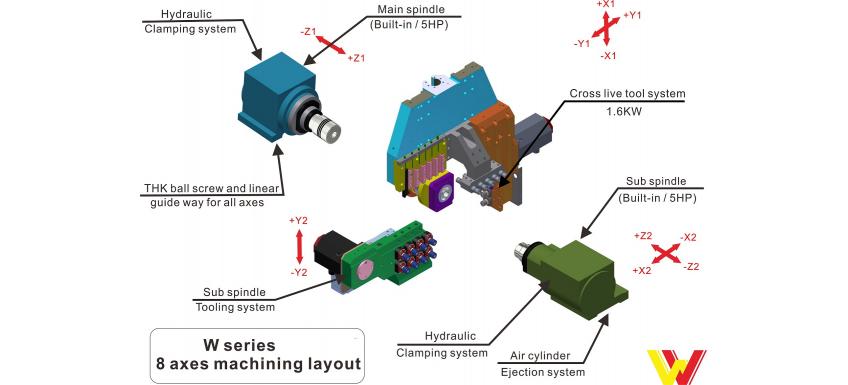

No. of axis controls (with C axis) |
pcs |
8 |
|
|
C axis control minimum |
degree |
0.001° |
|
|
Max. main spindle speed |
rpm |
8000 |
|
|
Max. sub spindle speed |
rpm |
8000 |
|
|
Rapid traverse of X1/X2/Z1/Z2/Y1 |
M/min |
30 |
|
|
Rapid traverse of Y2 |
M/min |
20 |
|
|
Main spindle motor |
KW |
11 |
Built-in |
|
Sub spindle motor |
KW |
11 |
Built-in |
|
Main spindle cooling |
|
Oil cooling |
|
|
Sub spindle cooling |
|
Oil cooling |
|
|
Cross live tooling motor |
KW |
1.6 (6000rpm) |
|
|
Face live tooling motor of sub spindle |
KW |
1.4 (6000rpm) |
|
|
Lubrication tank |
L |
2 |
|
|
Air pressure |
Mpa |
0.6 |
1 |
|
Air flow |
L/min. |
20 ~ 145 |
4 |
|
Machine dimension L x W x H |
mm |
2945 x 1665 x 2130 |
2 |
|
Coolant tank |
L |
380L(100%) |
3 |
|
Weight |
KG |
4450 |
2 |
1. 0.6Mpa = 6kg/c㎡.
2. Without coolant tank and pumps.
3. At least 90% full for machining
4. Air flow will be different by different options.
※ All specification are subject to change without notice.
