Swiss turn machine - double Y with B axes
Home > i series (12 / 20 / 26) > Swiss turn machine - double Y with B axes
i129B / i209B / i269B
Specification
|
Item |
Unit |
i129B |
i209B |
i269B |
Remark |
|||
|
Control system |
|
FANUC |
FANUC |
FANUC |
FANUC |
FANUC |
FANUC |
|
|
Max. simultaneity axis per channel |
|
4-axis |
5-axis |
4-axis |
5-axis |
4-axis |
5-axis |
|
|
Max. turning dia. |
mm |
Ø12 |
Ø20 |
Ø26 |
|
|||
|
Max. turning length (Rotary) |
mm |
220 |
220 |
220 |
one stroke |
|||
|
Max. turning length (Fixed) |
mm |
240 |
240 |
240 |
|
|||
|
Max. turning length |
mm |
30 |
50 |
65 |
|
|||
|
OD tooling holder |
pcs |
9/□10 |
9/□12 |
9/□12 |
|
|||
|
ID tooling holder |
pcs |
4/Ø25 |
4/Ø25 |
4/Ø25 |
Main/Sub spindle |
|||
|

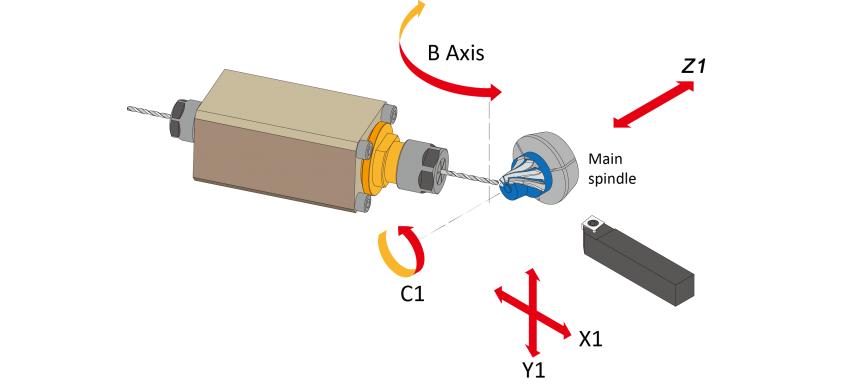

B axis tooling number (Front) |
pcs |
4/ER-16 |
4/ER-16 |
4/ER-16 |
Main spindle |
|||
|
B axis tooling number (Rear) |
pcs |
4/ER-11 |
4/ER-11 |
4/ER-11 |
Sub spindle |
|||
|
B axis rotating degress |
degree |
0°~135° |
0°~135° |
0°~135° |
|
|||
|
S2 face live tool |
pcs |
4/ER-16 |
4/ER-16 |
4/ER-16 |
|
|||
|
S2 cross live tool |
pcs |
4/ER-16 |
4/ER-16 |
4/ER-16 |
|
|||
|
S2 ID tool |
pcs |
4/Ø25 |
4/Ø25 |
4/Ø25 |
|
|||
|

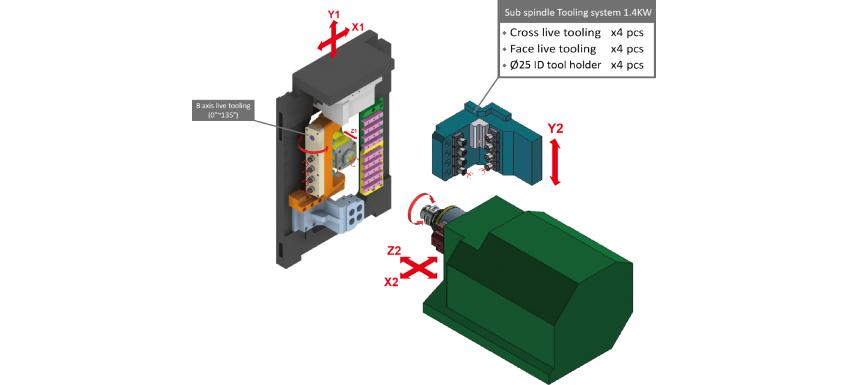

Sub spindle aside drilling tooling holder |
pcs |
1/Ø25 |
1/Ø25 |
1/Ø25 |
|
|||
|
No. of axis controls (with C axis) |
pcs |
9 |
9 |
9 |
|
|||
|
C axis control minimum |
degree |
0.001° |
0.001° |
0.001° |
Main/Sub spindle |
|||
|
Max. main spindle speed |
rpm |
10000 |
10000 |
8000 |
|
|||
|
Max. sub spindle speed |
rpm |
10000 |
8000 |
8000 |
|
|||
|
Main spindle motor |
KW |
2.2/3.7 |
3.7/5.5 |
3.7/5.5 |
Built-in |
|||
|
Sub spindle motor |
KW |
2.2/3.7 |
3.7/5.5 |
3.7/5.5 |
Built-in |
|||
|
Main spindle cooling |
|
Air cooling |
Air cooling |
Air cooling |
|
|||
|
Sub spindle cooling |
|
Air cooling |
Air cooling |
Air cooling |
|
|||
|
Main spindle clamping system |
|
Mechanical |
Mechanical |
Mechanical |
OP.Hydraulic |
|||
|
Sub spindle clamping system |
|
Mechanical |
Mechanical |
Mechanical |
OP.Hydraulic |
|||
|
Rapid traverse of X1/Z1/Y1/X2/Z2/Y2 |
M/min |
30 |
30 |
30 |
|
|||
|
B axis live tool |
KW/rpm |
1.0/6000 |
1.4/6000 |
1.4/6000 |
|
|||
|
Sub spindle live tool |
KW/rpm |
1.0/8000 |
1.4/8000 |
1.4/8000 |
|
|||
|
Lubrication tank |
L |
2 |
2 |
2 |
|
|||
|
Air compressed pressure |
Mpa |
0.6 |
0.6 |
0.6 |
※ 1 |
|||
|
Air compressed flow |
L/min. |
10 |
10 |
10 |
|
|||
|
Coolant tank |
L |
290L (100%) |
290L (100%) |
290L (100%) |
※ 2 |
|||
|
Machine dimension L x W x H |
mm |
2880x1459x1900 |
2880x1459x1900 |
2880x1459x1900 |
※ 3 |
|||
|
Weight |
KG |
2950 |
3200 |
3200 |
※ 4 |
|||
|
※ 1. 0.6Mpa = 6kg/cm² ※ 2. At least 90% full for machining ※ 3. Without chip conveyor ※ 4. Without coolant tank and pumps. |
||||||||
